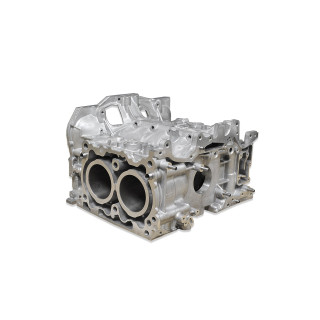

The IAG 800 Short Block is designed for modified FA20 Subaru BRZs or FT86s that need a stronger short block to support increased cylinder pressures created by larger aftermarket turbochargers. The IAG 800 short block features our proprietary closed-deck cylinder support system to strengthen the OEM FA20 cylinder walls. The short block is fitted with IAG Spec H-Beam forged connecting rods. Head gasket sealing is handled with the addition of an O-ring and 1/2" head studs for additional compression of the head gasket. These upgrades are ideal for those seeking to get the most out of their full bolt-on and upgraded turbo BRZs. The IAG 800 short block starts with new Subaru FA 2.0L engine case halves that are machined for improved oiling. Then IAG machines the case halves assembled together in our Haas VF-4SS CNC mill to accept the IAG Closed Deck Inserts that transform the block into a solid deck. The unique inserts feature small passages that allow needed coolant flow to the deck surface. The case halves are then CNC machined with O-ring receiver grooves around the bore surface as well as drilled and tapped to accept 1/2" head studs that greatly reduce head gasket failure during high cylinder pressure scenarios. Next, the short block is Deck Plate bored and honed that to 86.1mm on our in-house Sunnen SV-30 cylinder hone. IAG's in-house honing process is able to set piston to wall clearances tighter for a quieter running engine. The short block is measured and assembled using a new 2020 Subaru FA20 crankshaft that is matched to ACL or King main bearings. IAG-Spec H-Beam rods with ARP2000 rod bolts are utilized, along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.1mm forged pistons are installed, along with an OEM oil plug finishing off the short block.
Features & Benefits:
- The IAG 800 Short Block has a power output rating of 800 BHP
- All IAG Short Blocks are balanced and blueprinted
- Compression Ratio: 10.5:1 compression on standard gasket thickness.
Associated Comments:

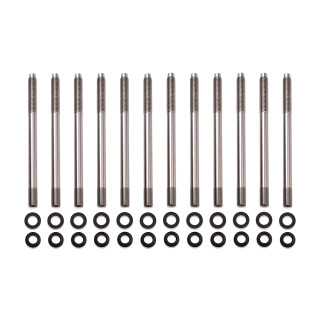

- 800 FA20 2.0L BRZ/FT86 Low Compression Short Block Includes: Case Halves - Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm, Case Machining - Modified for improved oiling, Case Machining - Bored and honed to 86.1mm, O-Ringing - Machine and O-Ring Deck Surface, Head Studs - Machine Case for 1/2" head studs - Head studs are sold separately, Pistons - IAG-Spec 86.1mm Forged Pistons, Ring Set, and .210" x 2.250" Chromoly Wrist Pins. 10.5:1 Compression, Connecting Rods - IAG-Spec H-Beam / ARP2000 Rod Bolts, Rod - ACL or King XPG, Main Bearings -OEM or King XPG, Crankshaft - New Subaru FA20 crankshaft, Case / Main Bolts - Standard Subaru case bolts, Hardware - OEM Oil Plug - comes preinstalled at the oil pan location.
Additional Attributes:
Extended Information:
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21 x 17 x 21 inches
