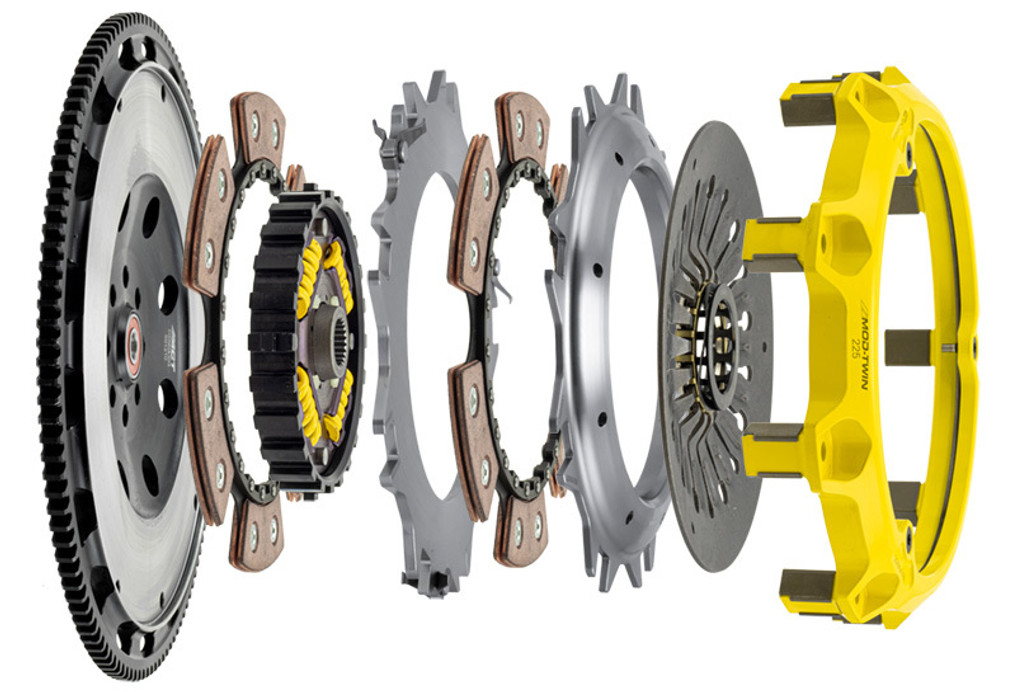

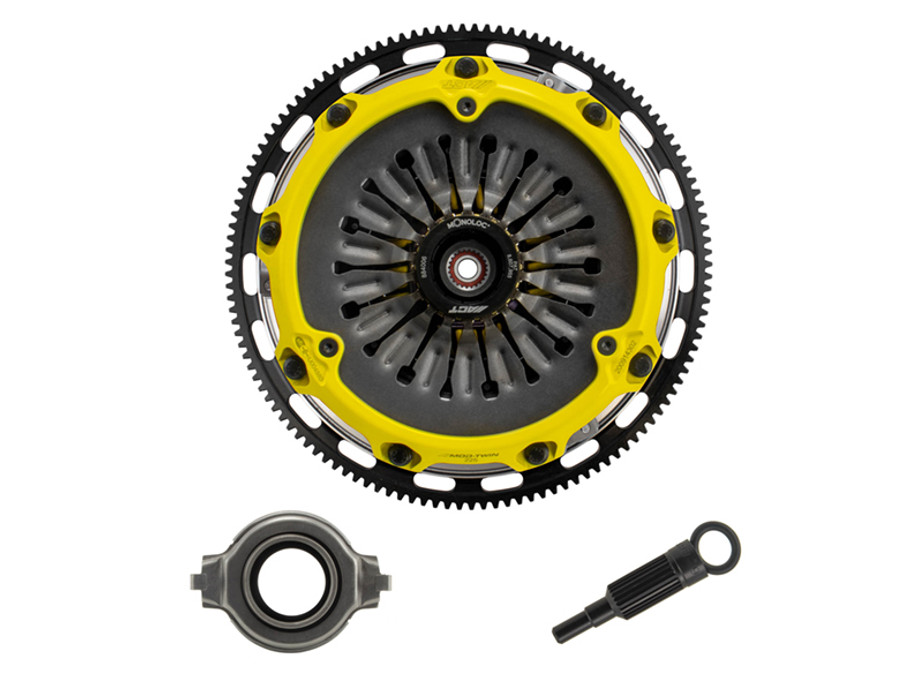

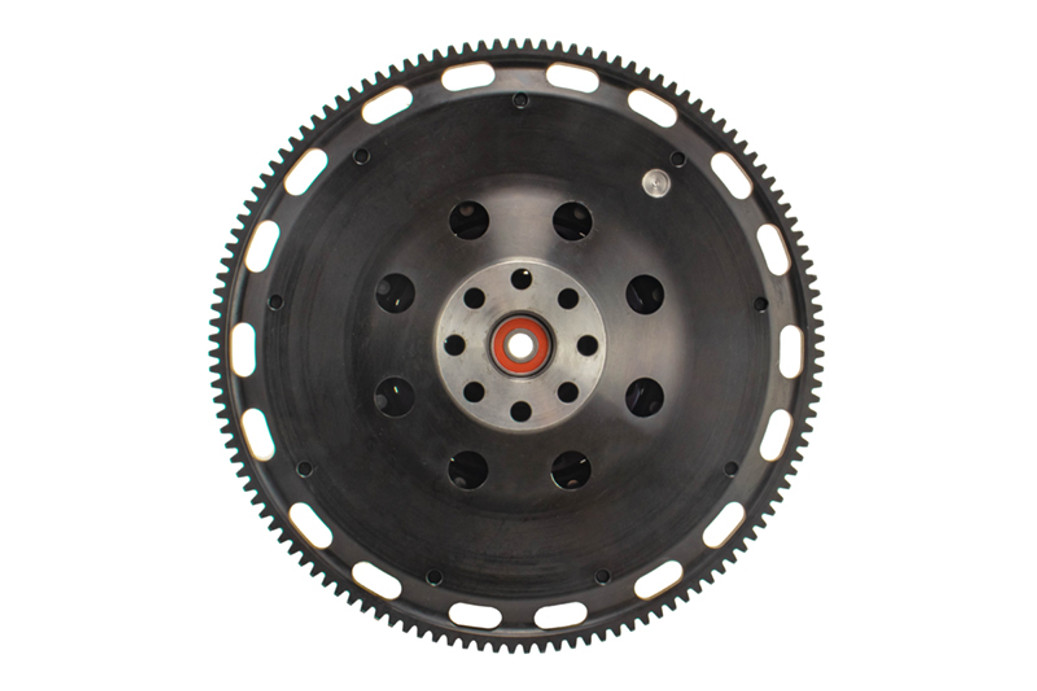

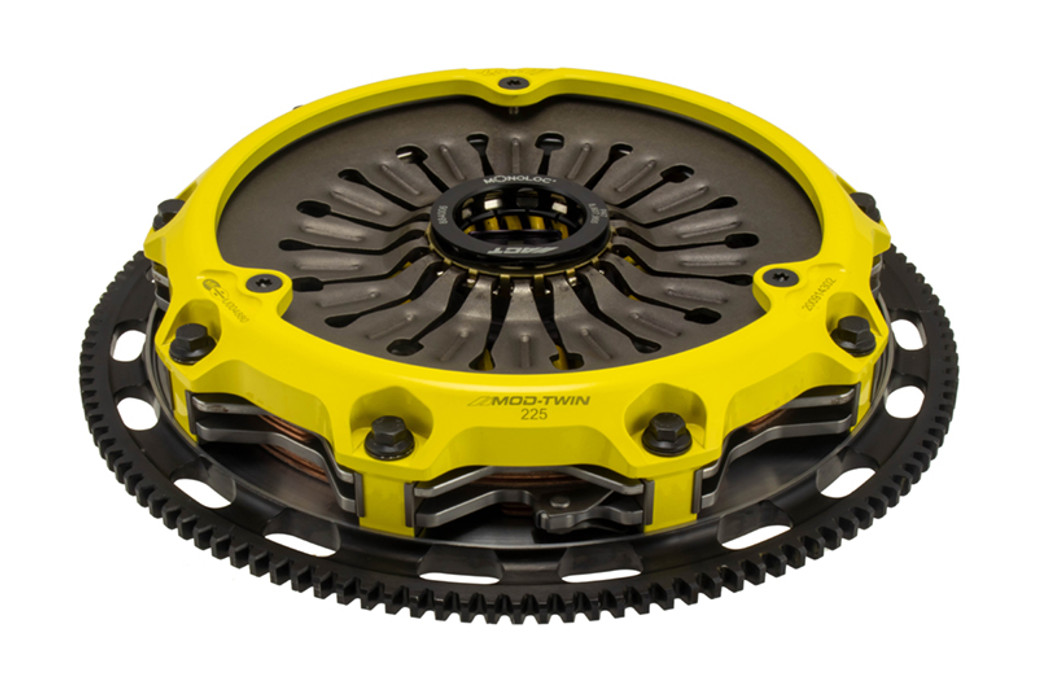

T2R-S05 Mod-Twin 225 XT Sprung Race Clutch Kit for a 04-21 Subaru STi performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
| Feel | Predictable aggressive engagement, light pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise |
|---|---|
| Life | Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions |
| Quality | Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances |
| Recommended Use | Drag, Road or Rally Racing |
| ACT Difference | Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified |
| Item Description | Mod-Twin 225 XT Sprung Race |
|---|---|
| Product Weight (lbs.) | 28.1 |
| Torque Capacity (ft/lbs.) | 1120 |
| Torque Capacity Over OE | 214% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 225 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months |
| SFI | 1.2 |
